3.3.4 Scenario Customization Settings

Parameter Description

You can configure the following settings for each request executed during the test:

Parameter Name	Setting Value	Sample

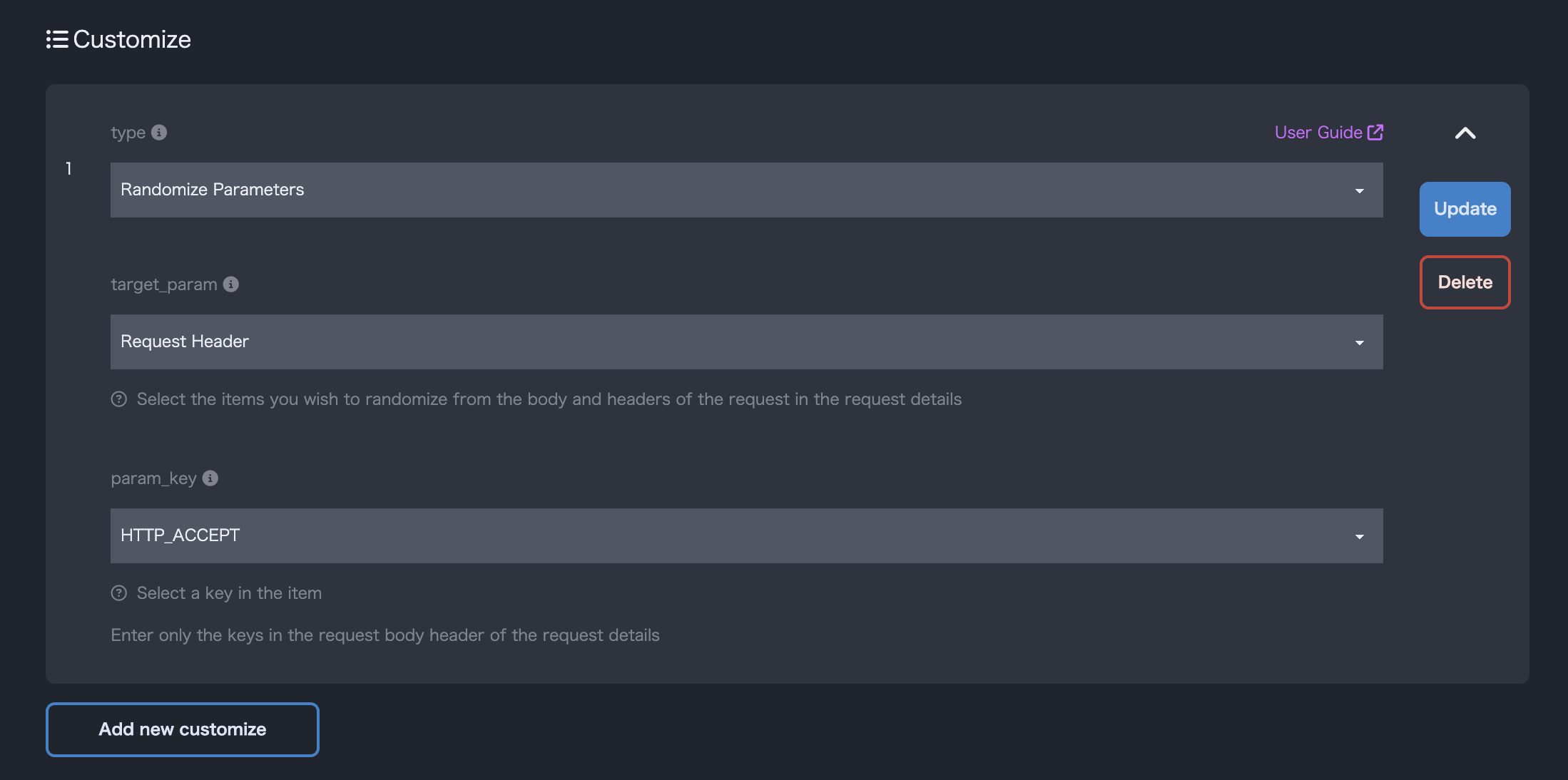

Customization Name	Randomization of Parameters	-
Parameter Location	Specify where the target key is located. If the key is in the request header, specify `header_params`; if it’s in the request body, specify `body_params`.	body_params
Parameter Name	Request Key Name	email

Sets the content of user-defined variables to the specified parameters.
User-defined variables can be registered from the project details screen. Multiple values can be registered for one variable in list format.
During load testing, values are set for each request in the order of the variable list.

Parameter Name	Setting Value	Sample

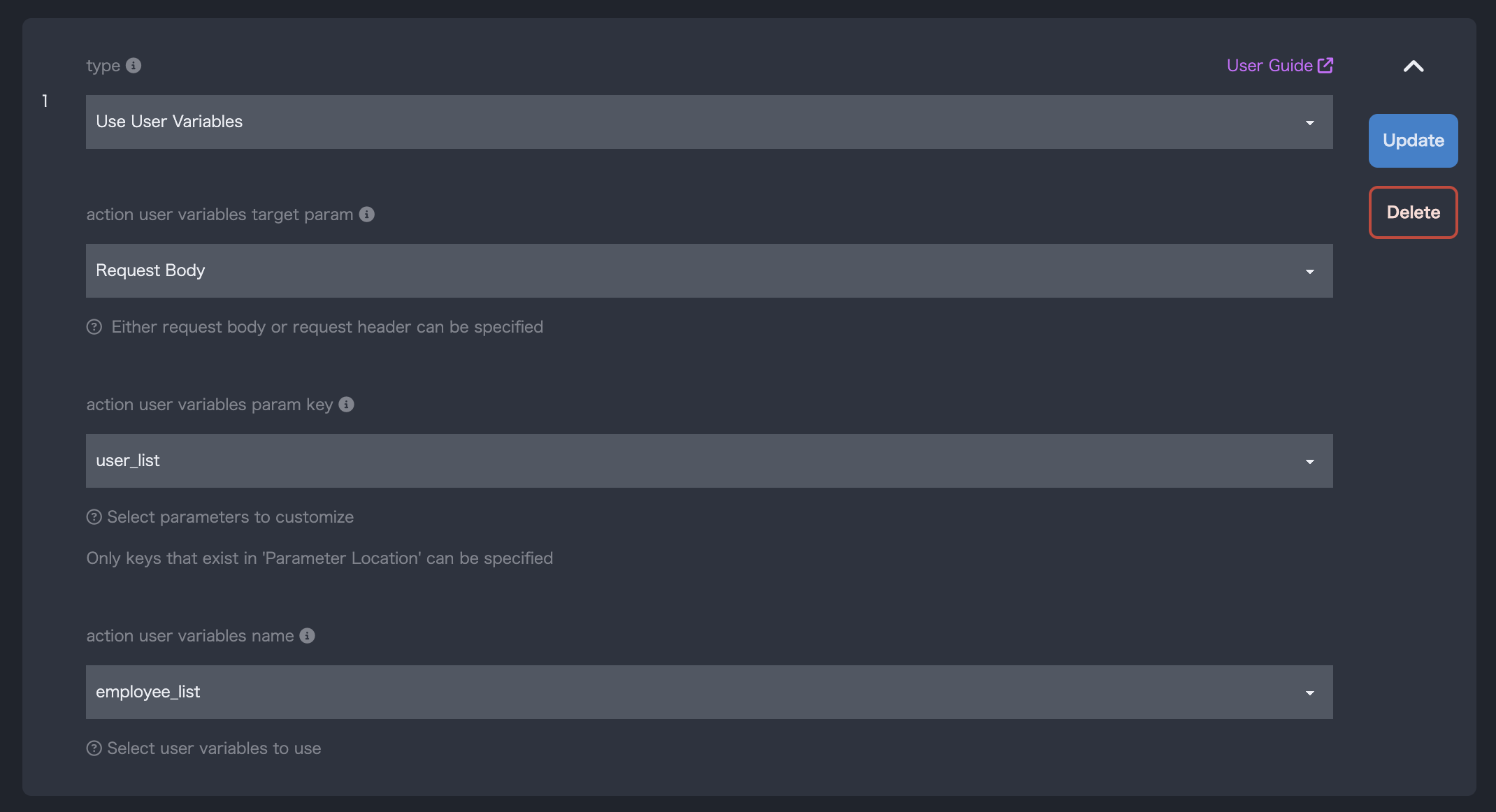

Customization Name	Using User-defined Variables	-
Parameter Location	Specify where the target key is located. If the key is in the request header, specify `header_params`; if it’s in the request body, specify `body_params`.	body_params
Parameter Name	Request Key Name	employee_name
Variable Name	Specify the user-defined variable name to assign to the parameter.	employee_list

Parameter Name	Setting Value	Sample

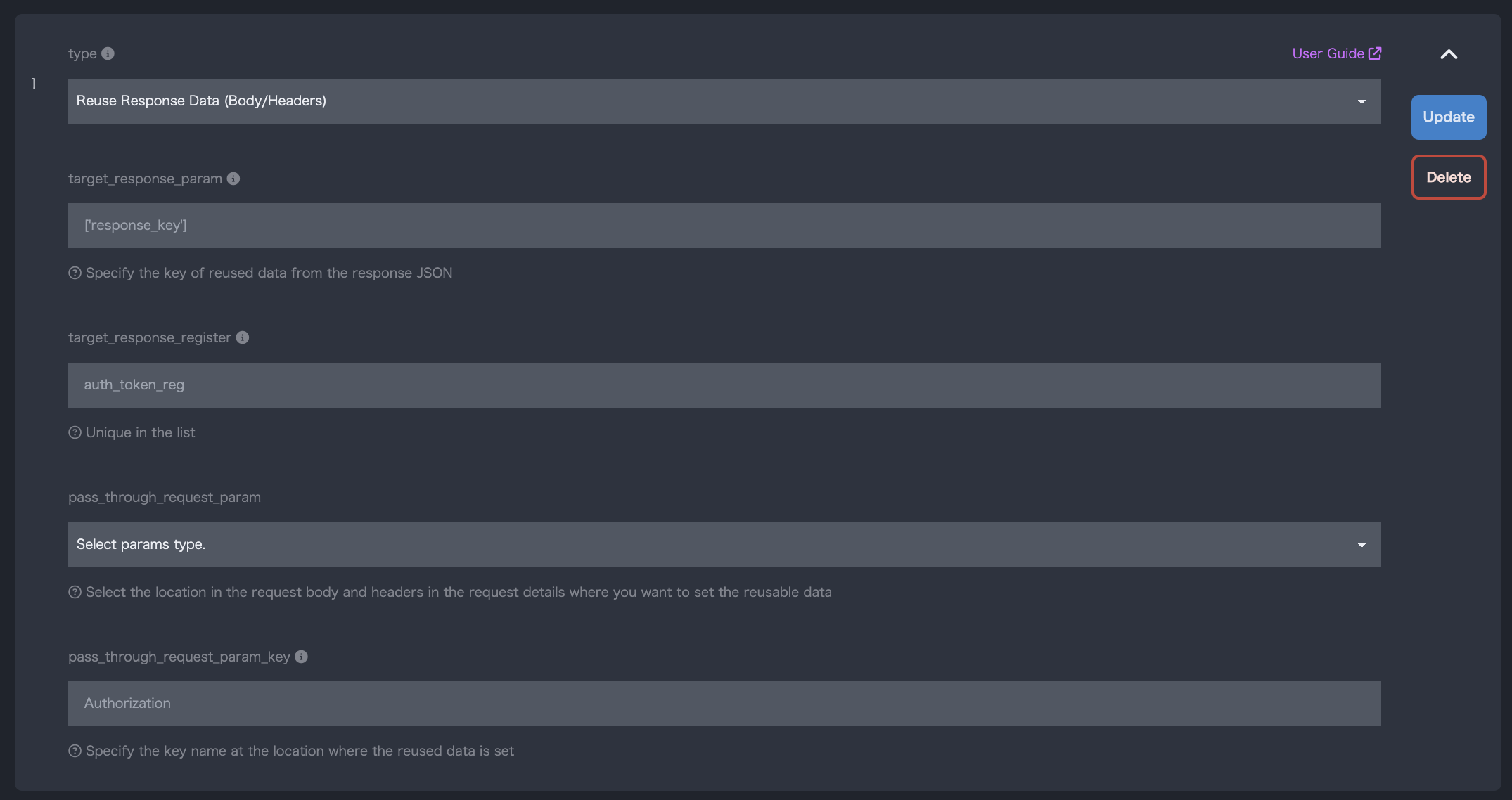

Customization Name	Reuse of Response Data (Body/Header)	-
Source of Reused Data	Select and specify the key of the data to reuse from the response JSON. For example, if you want to reuse the value `"abcdefg"` of `auth_token` from a response like Example 1, you would write it as shown in the Sample column 1. If the data is nested, as in Example 2, specify it as shown in the Sample column 2.	1. `['auth_token']` 2. `['account']['auth_token']`
Name of Reused Data	Set the name for the data to be reused. It must be unique within the scenario.	auth_token_reg
Location for Reused Data	Specify where to include the data during reuse. If you want to include it in the request header, specify `header_params`; if in the request body, specify `body_params`.	header_params
Request Parameter Name for Reused Data	Set the key name to use during reuse. For example, if you set `Authorization` in this field and the value obtained from `Source of Reused Data` is “abcdefg”, and you specify `header_params` in `Location for Reused Data`, a parameter like `{"Authorization": "abcdefg"}` will be added to the header in subsequent scenario requests.	Authorization

{
  "auth_token": "abcdefg"
}

{
  "account": {
    "auth_token": "abcdefg"
  }
}

Use the content of your own response data as parameters for another request.

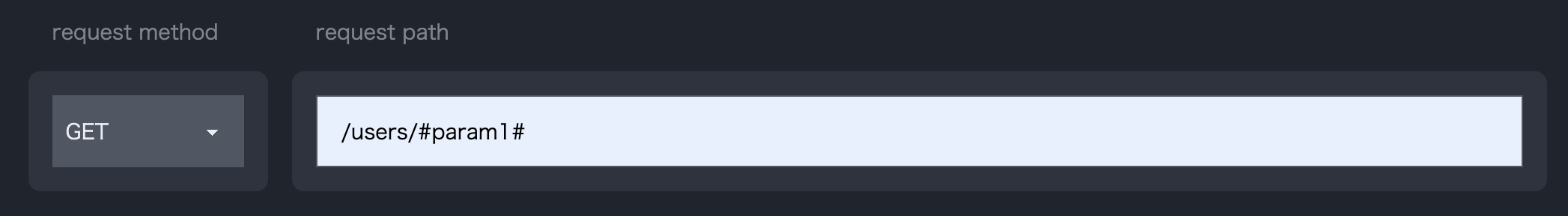

If there are automatically generated URL parameters in the scenario, such as #param1# in Example 3, you can embed the value set in this section as a URL parameter in subsequent scenarios.

Parameter Name	Setting Value	Sample

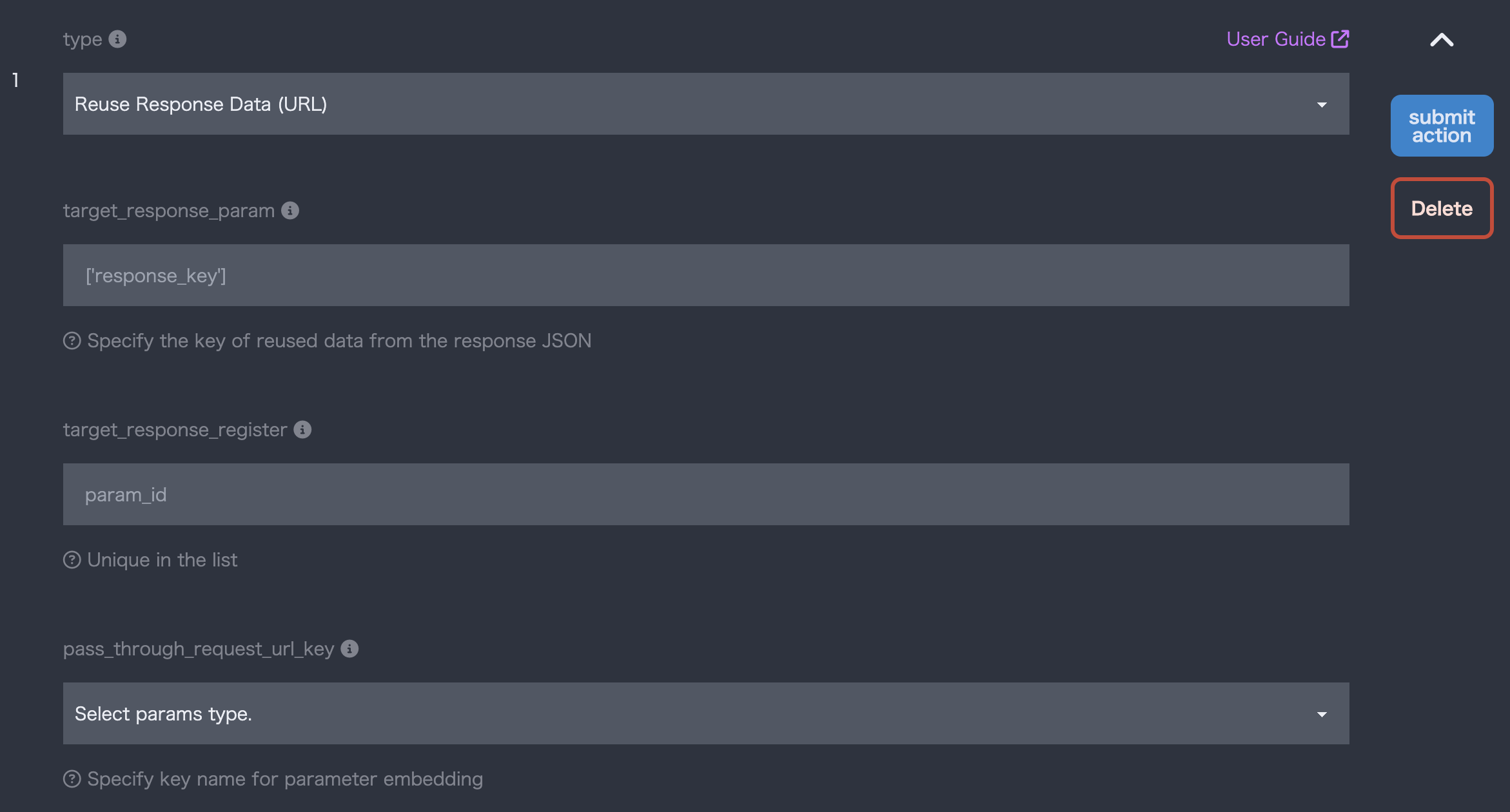

Customization Name	Reuse of Response Data (URL)	-
Source of Reused Data	Select and specify the key of the data to reuse from the response JSON. For example, if you want to reuse the value `3` of `id` from a response like Example 4, you would write it as shown in the Sample column 1. If the data is in an array, as in Example 5, specify it as shown in the Sample column 2.	1. `['todo']['id']` 2. `[0]['todo']['id']`
Name of Reused Data	Set the name for the data to be reused. It must be unique within the scenario.	param_id
Replacement URL Key Name for Reused Data	Specify the key name to be targeted for parameter embedding.	#param1#

{
  "todo": {
    "id": 3
  }
}

[
  {
    "todo": {
      "id": 3
    }
  }
]

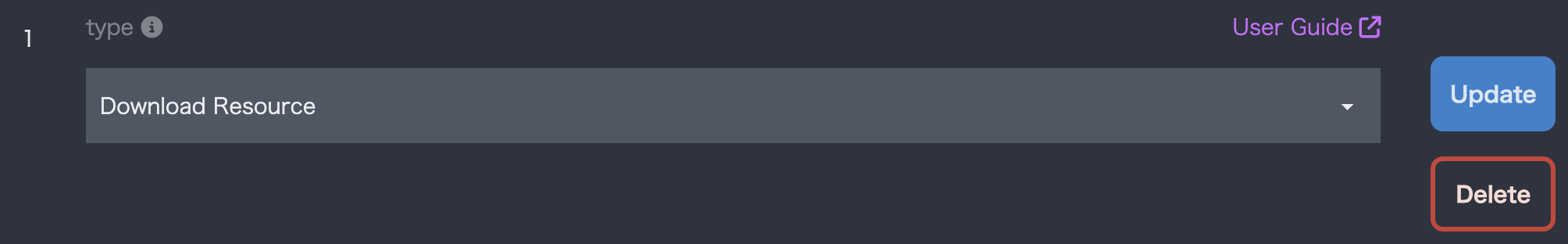

By setting this item in the request, you can perform load testing including images, js, and css resources.
If this item is not set, the above static resources will not be retrieved during the request.

Parameter Name	Setting Value	Sample
Customization Name	Resource Download	-

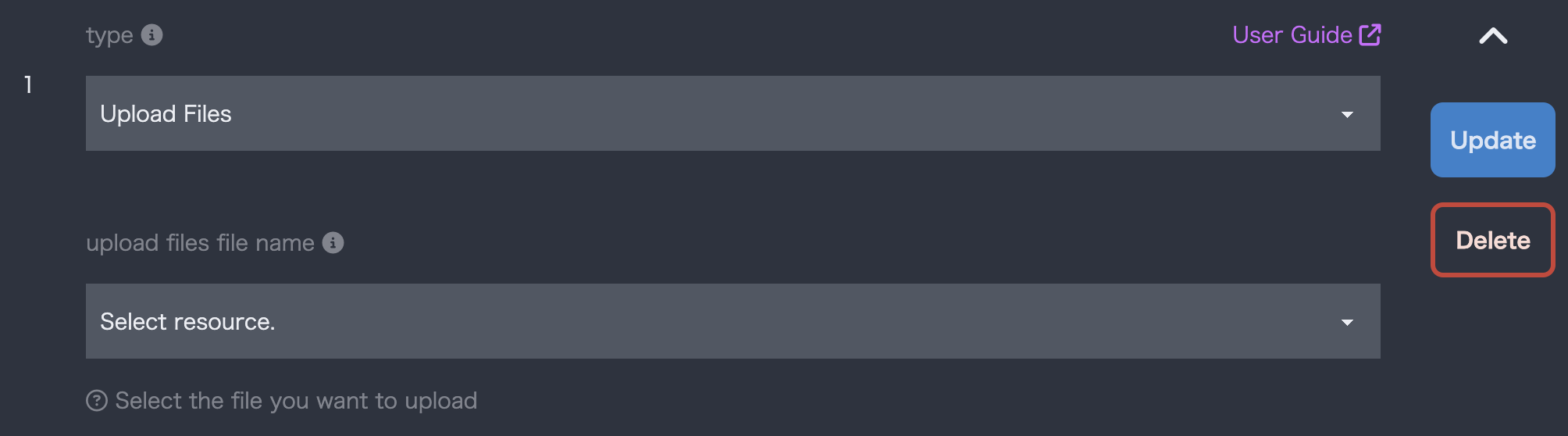

If the target request includes a file upload process, you can execute an upload scenario using a resource file by setting this item.
Resource files must be uploaded in advance from the project details screen.

Parameter Name	Setting Value	Sample
Customization Name	File Upload	-
Upload File Name	Select the resource name to use. Resources must be registered in Mx.Load in advance using the “Upload Resources” function on the project details screen.	sample.csv

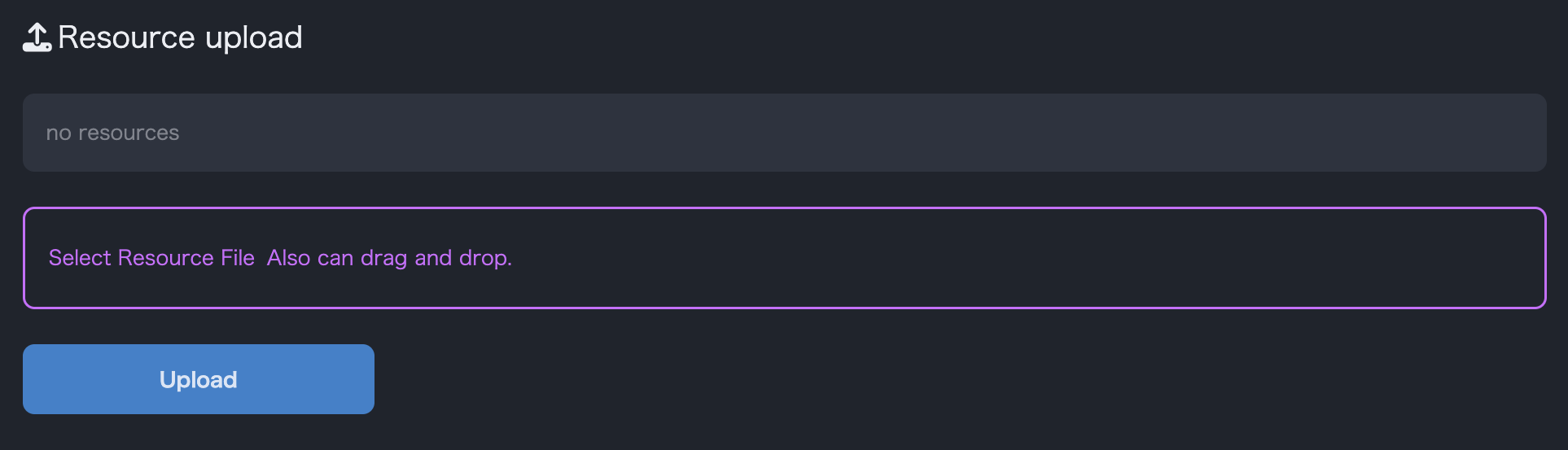

Upload from the project details screen.

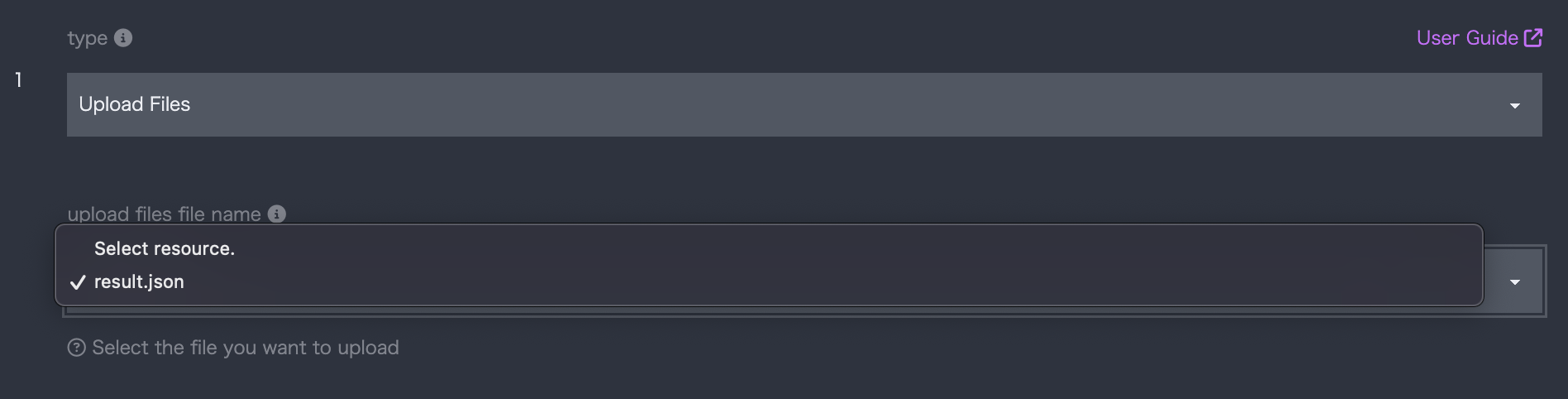

When adding a resource upload action from a scenario, select the uploaded file.

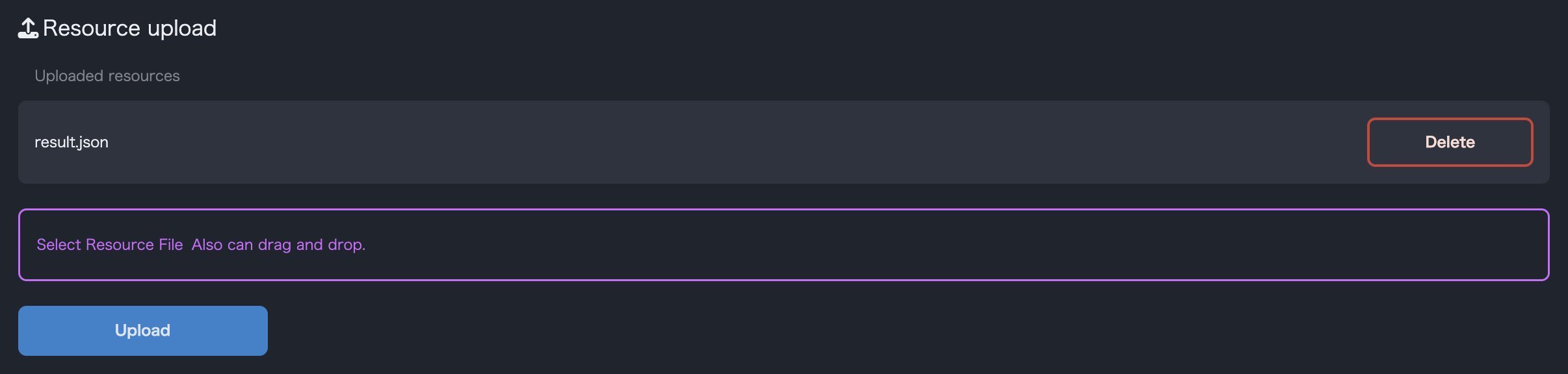

Resources uploaded to Mx.Load can be deleted from the list of uploaded resources.

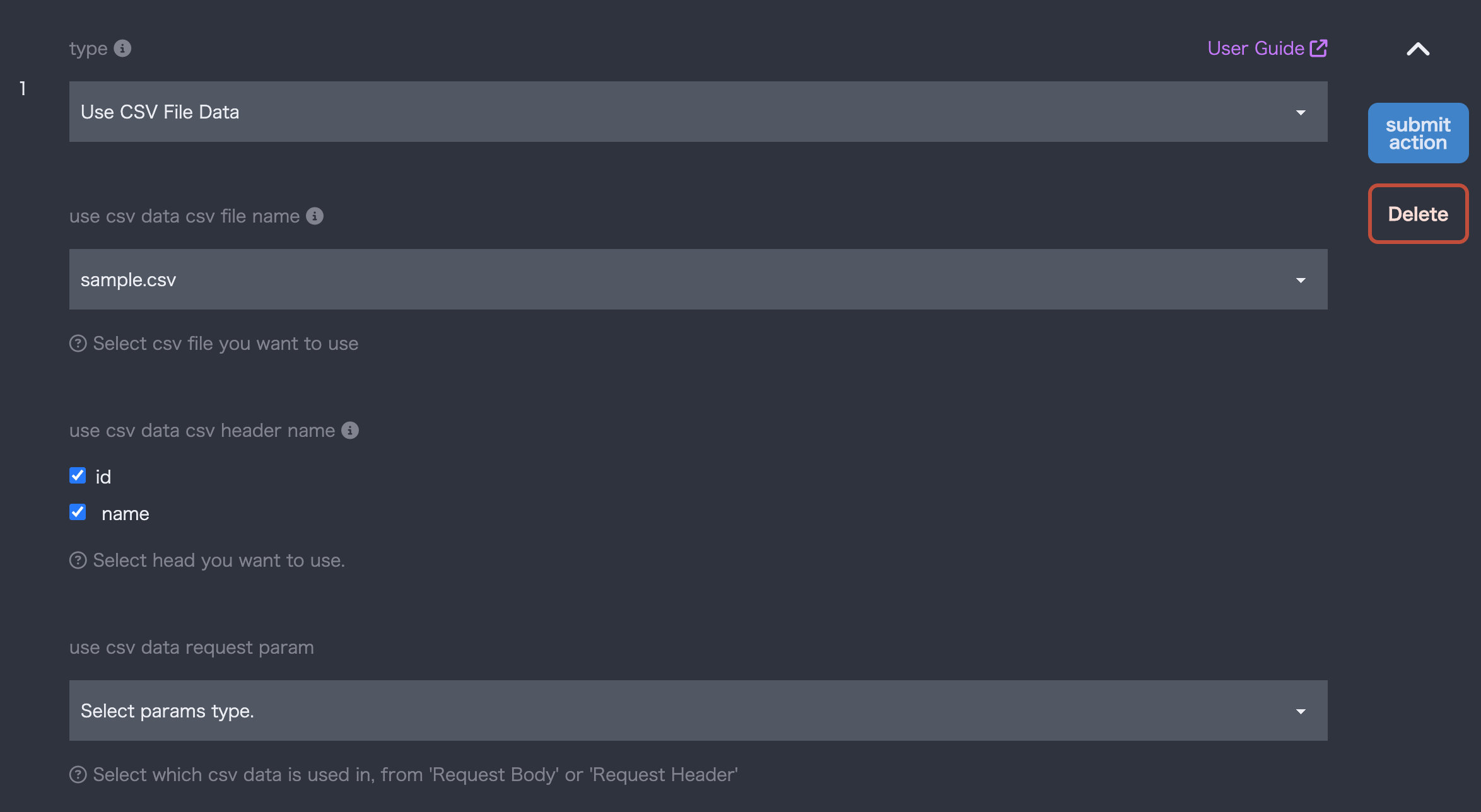

You can set request parameters from a pre-prepared CSV file.
By uploading a CSV file in the file upload, you can select the use of a CSV file from the customization.
It is also possible to specify multiple CSV files for a request by adding a customization.

Parameter Name	Setting Value	Sample
Customization Name	Using CSV Files	-
CSV File Name	Specify the CSV file containing the data you want to use. You can upload a CSV file from the file upload.	sample.csv
CSV Header Name	It is possible to specify the reference name written in the header row of the CSV file. You can select the header names you want to use, and you can also specify multiple headers.	id, pass
Location to reuse data	You can set whether to use the data in the CSV file in the “Request Header” or “Request Body”.	Request Body

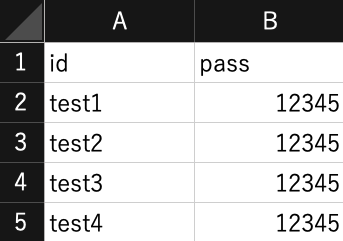

The header row must contain reference names separated by commas.
After the header row, enter the data you want to use.
The data in the CSV file is used sequentially from the top, and when the last data is used, it returns to the first data.
