3.3.5 Configuration Examples

In this section, we provide sample procedures for customizing scenarios.

Parameter Randomization

For example, when making an API call to /signup, you want to randomize the name parameter in the following POST data:

{
  "name": "mxload"
  "password": "p@ss"
  "password_confirmation": "p@ss"
}

Set the scenario customization as follows:

Setting Category	Setting Value	Note
`Customization Name`	Randomize Parameters	Control setting
`Parameter Location`	body_params	Position of the parameter to be targeted
`Parameter Name`	name	Key to be randomized. Change according to the target system.

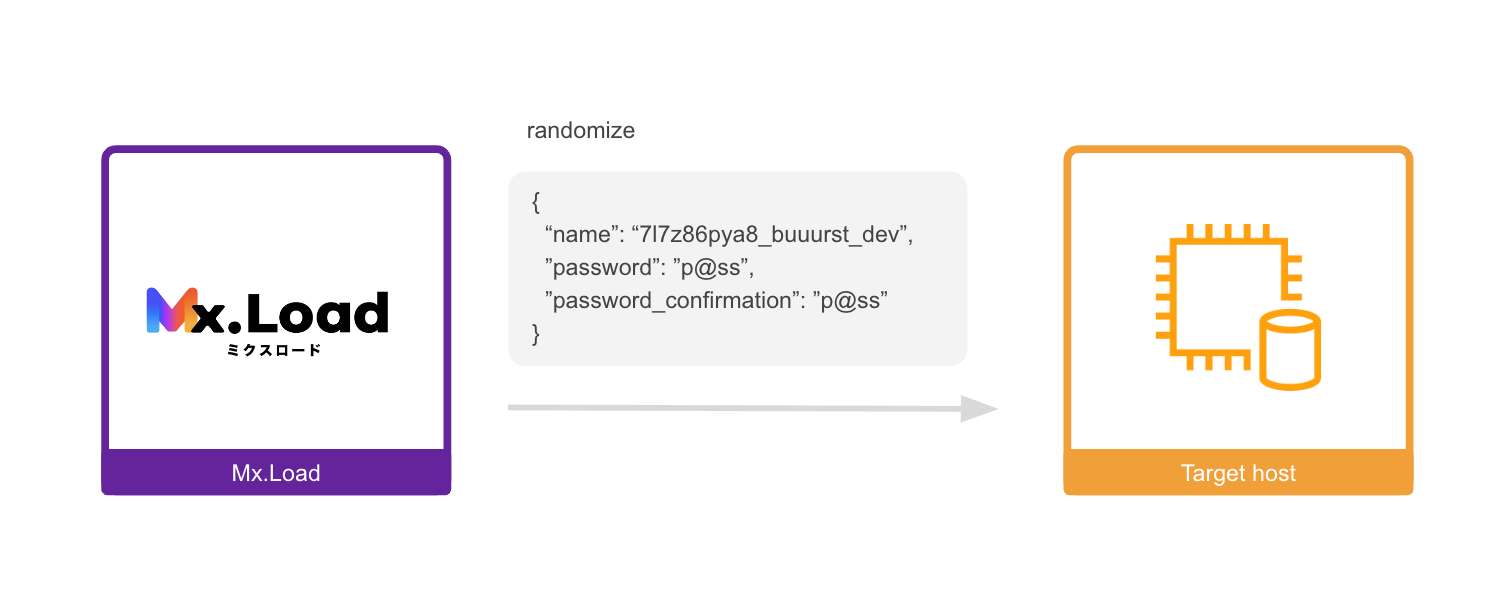

With the above setting, the body parameter will be replaced with the following value:

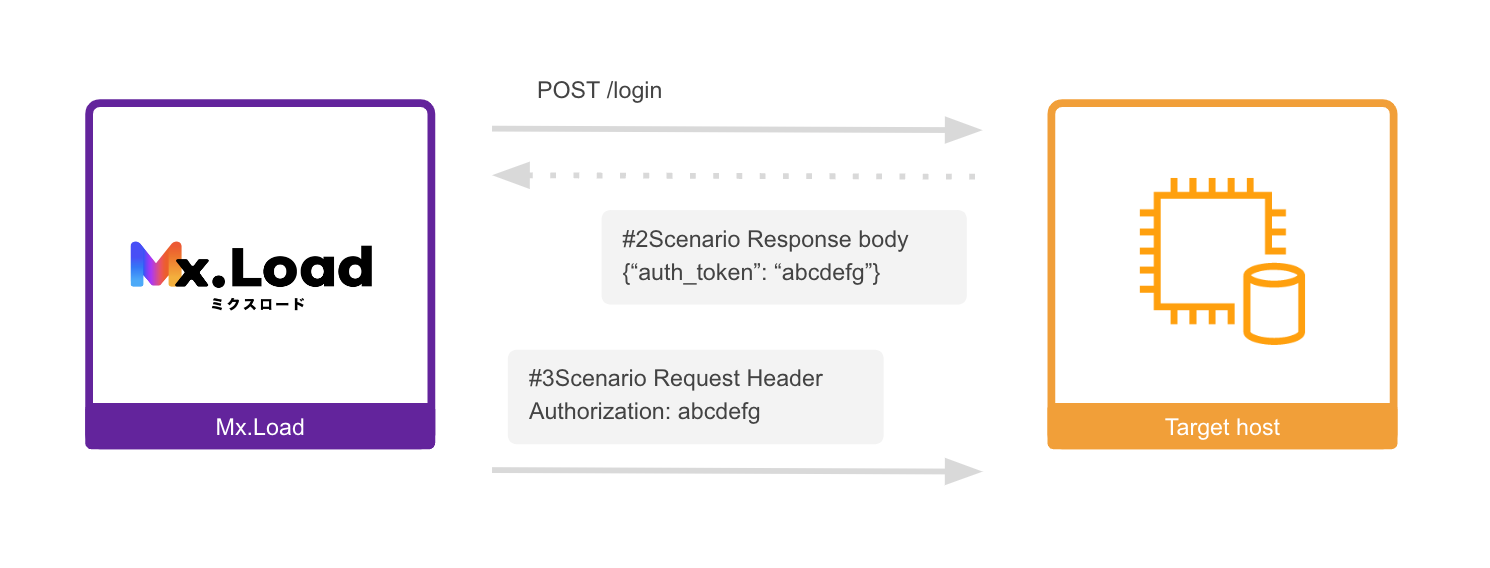

This setting passes the specified scenario’s response value to the parameters of subsequent scenarios.

You want to use the authentication token obtained during login in subsequent request parameters.

Assume that the previous API call returned the following in the response body:

{
  "auth_token": "abcdefg"
}

Set the scenario customization as follows:

Setting Category	Setting Value	Note
`Customization Name`	Reuse Response Data (Body/Headers)	Control setting
`Source of Reused Data`	[‘auth_token’]	Specify the key in the response JSON.
`Name of Reused Data`	auth_token_reg	Name of the data to be reused can be set arbitrarily. In subsequent scenarios, you can use the value with the same name.
`Location for Reused Data`	header_params	Include in the request header
`Request Parameter Name for Reused Data`	Authorization	Key to be set during request

The header of the subsequent scenario will have Authorization: abcdefg inserted.

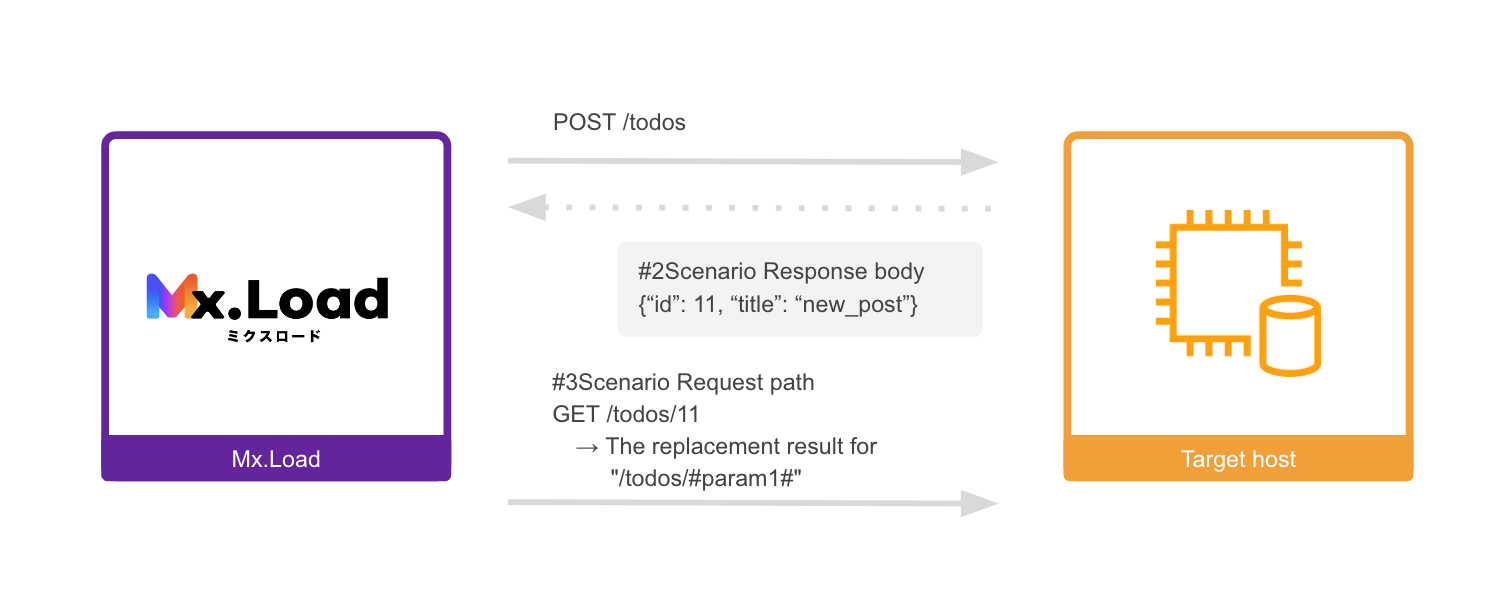

This setting replaces the specified scenario’s response value with keywords in subsequent scenario URLs.

You want to embed the id returned when creating a resource in the subsequent API call URL.

Assume that the previous API call returned the following in the response body:

{
  "id": 11,
  "title": "new_post"
}

And the subsequent API call URL you want to specify is as follows:

/todos/11

Setting Category	Setting Value	Note
`Customization Name`	Reuse Response Data (URL)	-
`Data Source`	`['id']`	Specify the key in the response JSON.
`Reused Data Retrival Name`	`param1`	Include in the request header
`Replacement Target URL Key Name`	`#param1#`	Key to be set during request

The subsequent URL will be replaced as follows:

URL Setting	Replaced URL
`/todos/#param1#`	`/todos/11`
`/todos/#param1#/items`	`/todos/11/items`
